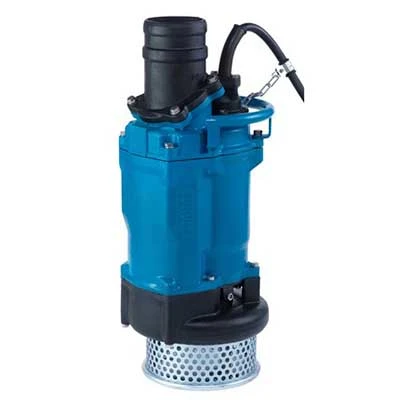

- The KTZ-series is a submersible three-phase cast iron high head heavy-duty drainage pump. The cast iron body with high-chromium cast iron impeller enables it to withstand demanding conditions found in construction, aggregate and mining applications.
- The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air.
- The slim design allows the pump to be placed in a confined space. The discharge direction is selectable between vertical and inclined, which prevents folding or bending of the discharge hose.
- The pump with 7.5 to 15kW motor incorporates seal pressure relief ports that prevent the pumping pressure from applying to the shaft seal.
Weight(KG): 133.000
| Control Voltage | 415 V |
| Discharge Size | 6″ |
| Max Flow | 2440 L/MIN |
| Max Head |
32 M |
| Motor kW P2 | 11 Kw |
| Dimension |
A:374mm B: 884mm     H: 377mm     d: 350mm     W1 : 740mm (W1: lowest running water level) |
| MPN | 10-10-1149 |
